Spring washer

Spring washers are widely used in the bearing and non-bearing structure of general mechanical products, which is characterized by low cost, convenient installation and suitable for installation and disassembly of frequent parts.

Categorie:

Spring pad

Support:

jcjgj@jcfastener.cn

Send Inquiry

Related Product

Description

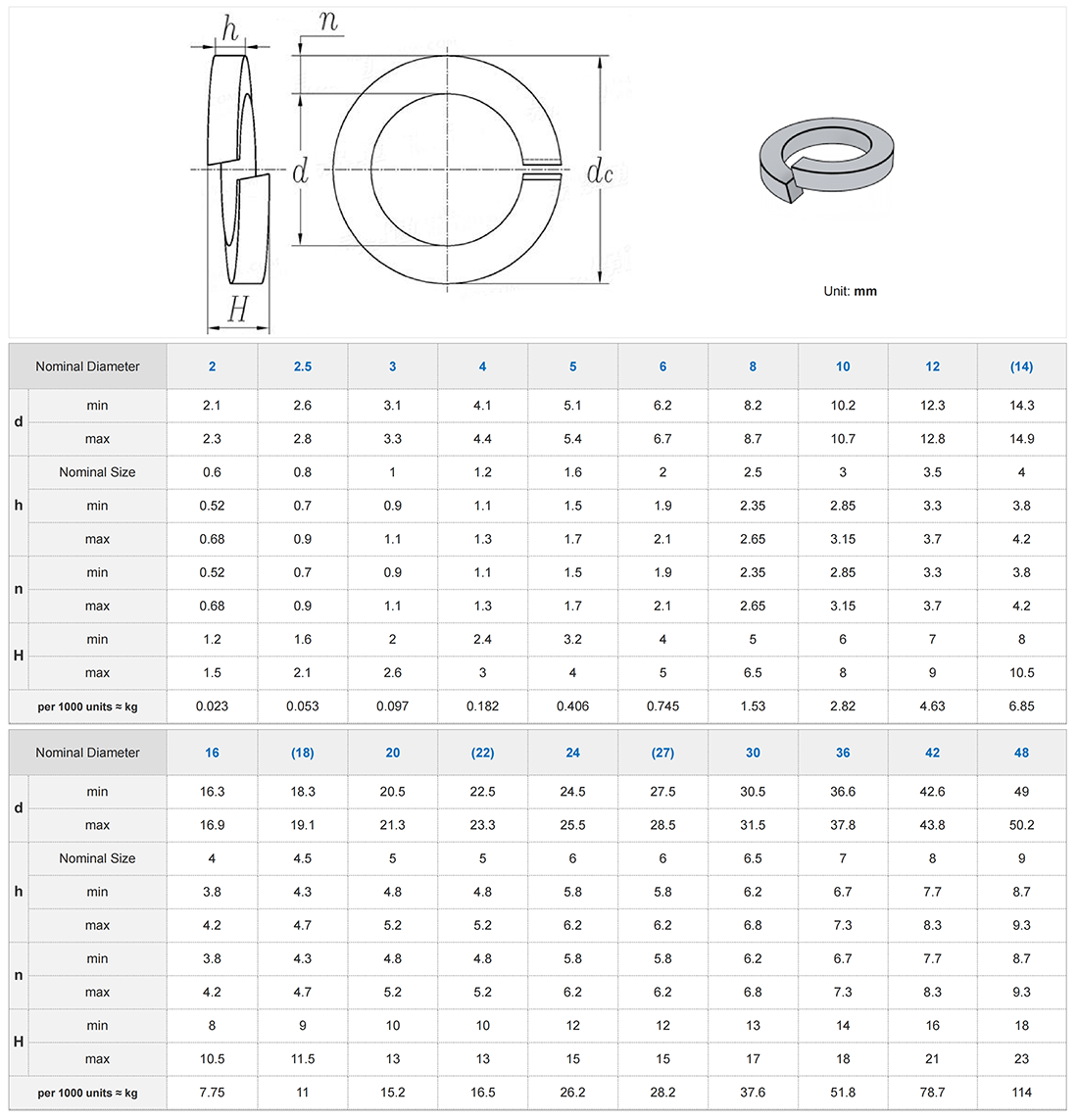

Name	Spring washers
	Single Coil Spring Lock Washers
	Spring-Lock Washers
Standard	GB 93
Size	M3～M64
Grade	4.8 8.8 100HV 140HV 200HV 300HV 400HV
Material	Carbon steel、Stainless steel、355、45#、65Mn
Surface	black, zinc plated, color zinc, hot dipped galvanized, dacromet
Description	Spring washers are widely used in the bearing and non-bearing structure of general mechanical products, which is characterized by low cost, convenient installation and suitable for installation and disassembly of frequent parts.
Construction operation technology	The spring washer device is used under the nut to prevent the nut from loosening.
Scope of application	The spring washer is used to prevent loosening, such as the motor and the bolt connected to the machine base generally to add the spring pad, because the motor vibration if there is no spring pad, the nut will be loose with vibration equipment fastener equipped with spring gasket, flange generally do not need to add gasket! The flange is not added to the spring gasket and the pipeline flow medium has a relationship, if easy to produce pulse, it is best to add spring gasket, and high-speed fluid, caliber changes frequently. Do not generalize. Some valves require spring gaskets for packing box gland flanges.
