Stainless steel U-bolt

U-bolt, horseback riding bolt, non-standard parts, because of the shape of the U-shaped and named. Main shape: semicircle, square right Angle, triangle, oblique triangle, etc.

Categorie:

U-Bolts

Support:

jcjgj@jcfastener.cn

Send Inquiry

Related Product

Description

U-bolt, horseback riding bolt, non-standard parts, because of the shape of the U-shaped and named. Main shape: semicircle, square right Angle, triangle, oblique triangle, etc.

Name	U-Bolts Bolts-Type U Bolts-U style
	U-Bolts, Round Bend
	U-Bolts, Square Bends

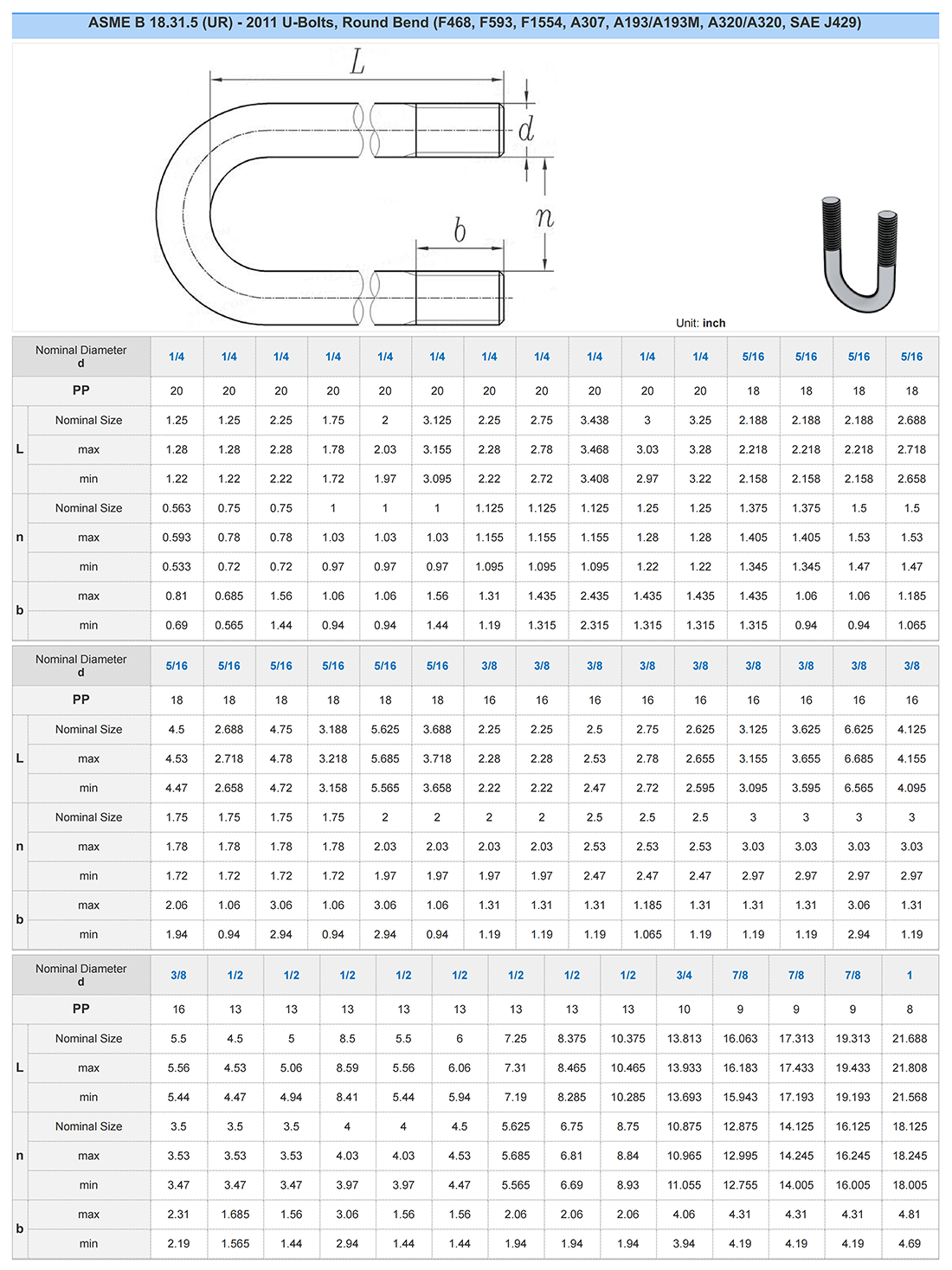

Standard	ASME B 18.31.5 JB /ZQ 4321

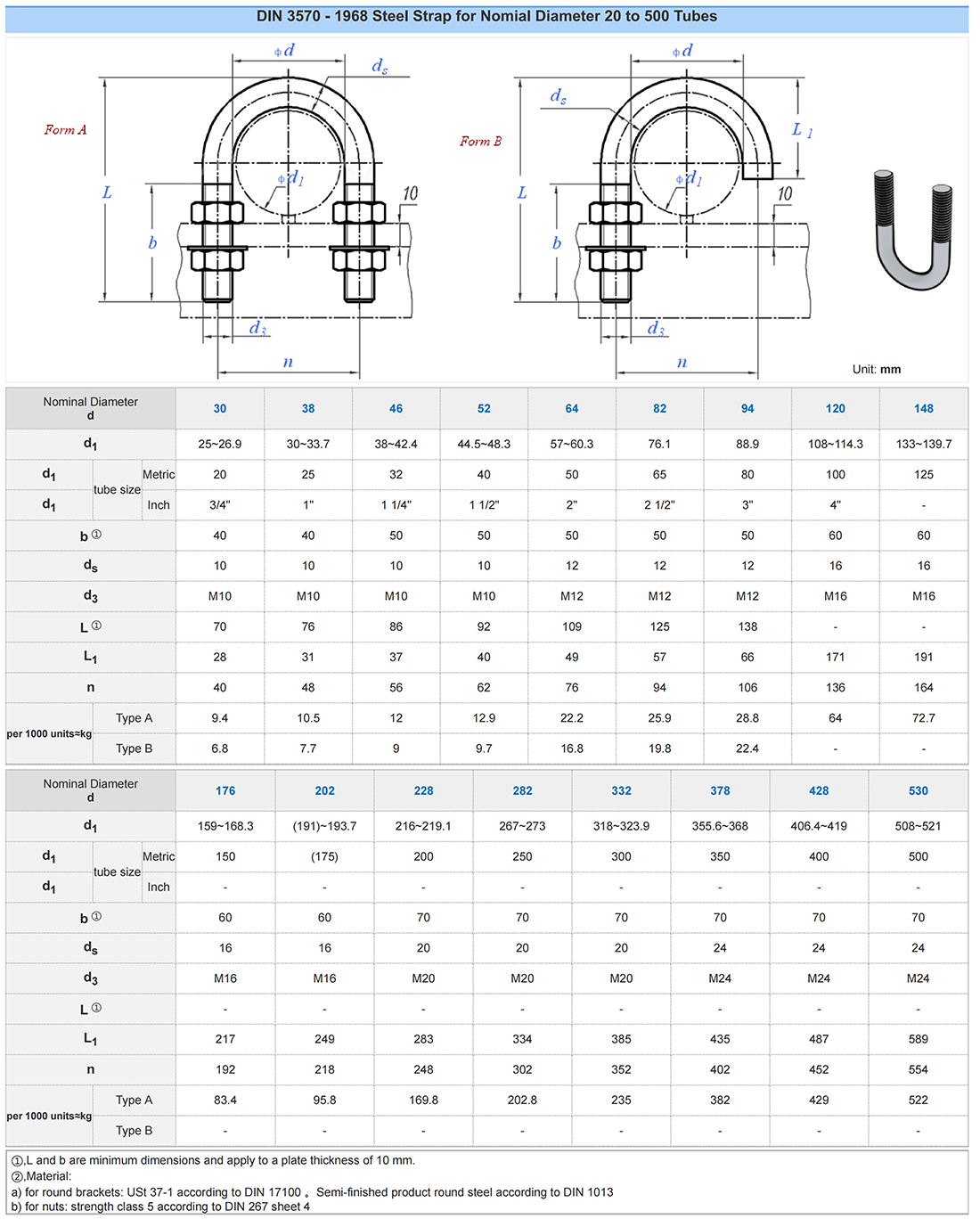

Standard	DIN 3570 GB 2329 HG /T 21629
Size	M5～M64
Size	1/4～4
Length	40mm～1500mm
Grade	4.8 5.8 6.8 8.8 10.9 12.9
Material	Carbon steel、Stainless steel、355 35K 45# 40Cr 35CrMo 42CrMo
Surface	black, zinc plated, color zinc, hot dipped galvanized, dacromet
Description	U-bolt, horseback riding bolt, non-standard parts, because of the shape of the U-shaped and named. Main shape: semicircle, square right Angle, triangle, oblique triangle, etc.
Construction operation technology	Two ends of the thread can be combined with the nut, mainly used to fix the tube such as water pipe or flake such as the car spring, because of the way it fixed objects like people riding on a horse, it is called riding bolt.
Scope of application	U-shaped is generally used in the truck, it is used to stabilize the chassis and frame of the car. For example, leaf springs are connected by U-bolts. U-bolts are widely used, mainly for building installation, mechanical parts connection, vehicles, ships, Bridges, tunnels, railways, etc.
