High strength bolts with large hexagon head for steel structures

High strength bolt with large hexagon head hexagon nuts and plain washer for steel structures

Categorie:

Support:

High strength bolt with large hexagon head hexagon nuts and plain washer for steel structures

Name	High strength bolts with large hexagon head for steel structures
Name	High strength bolt with large hexagon head hexagon nuts and plain washer for steel structures
Key	High strength bolt
	large hexagon head bolt
	bolt for steel structure

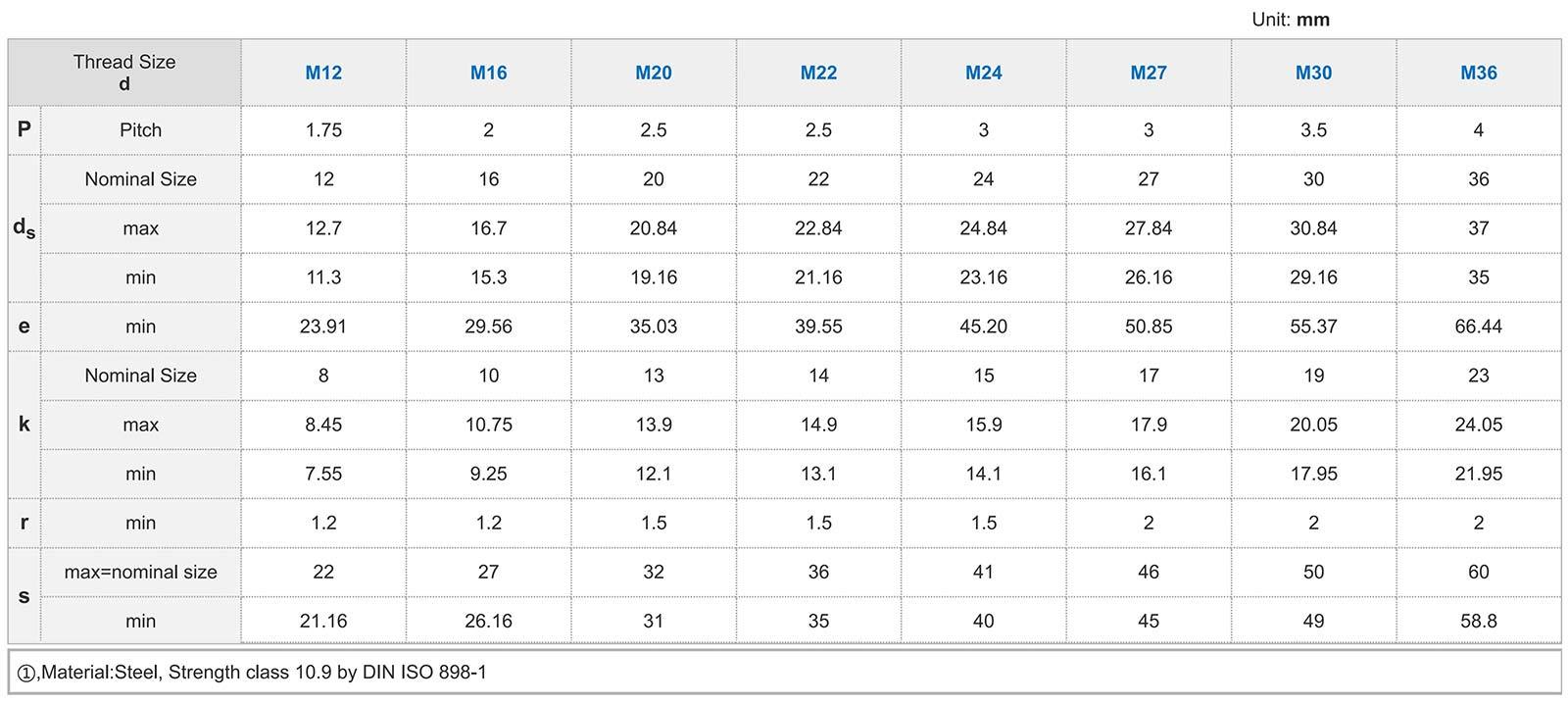

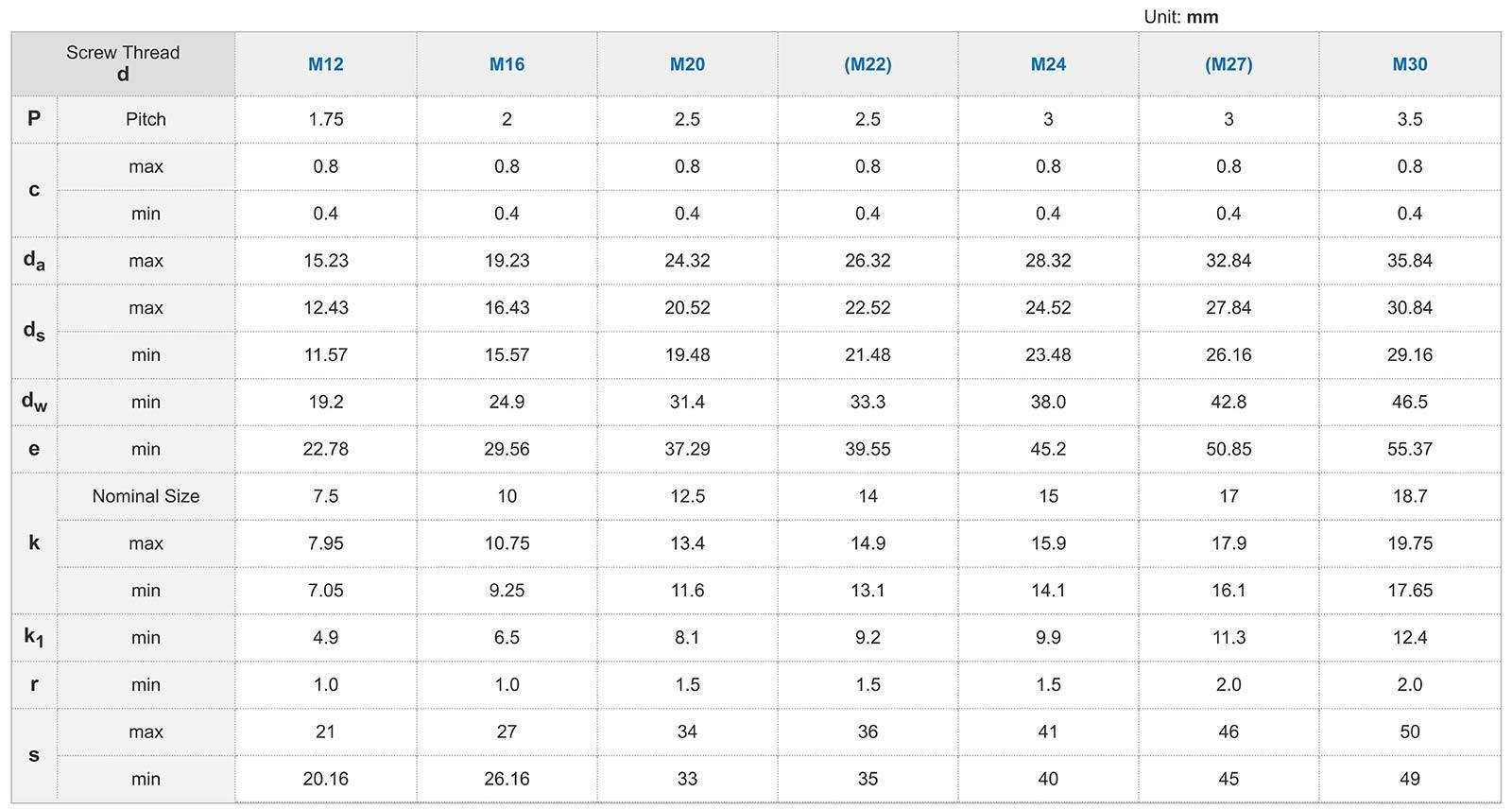

Standard	GB/T 1228/1229/1230
	DIN 6914/6915/6916

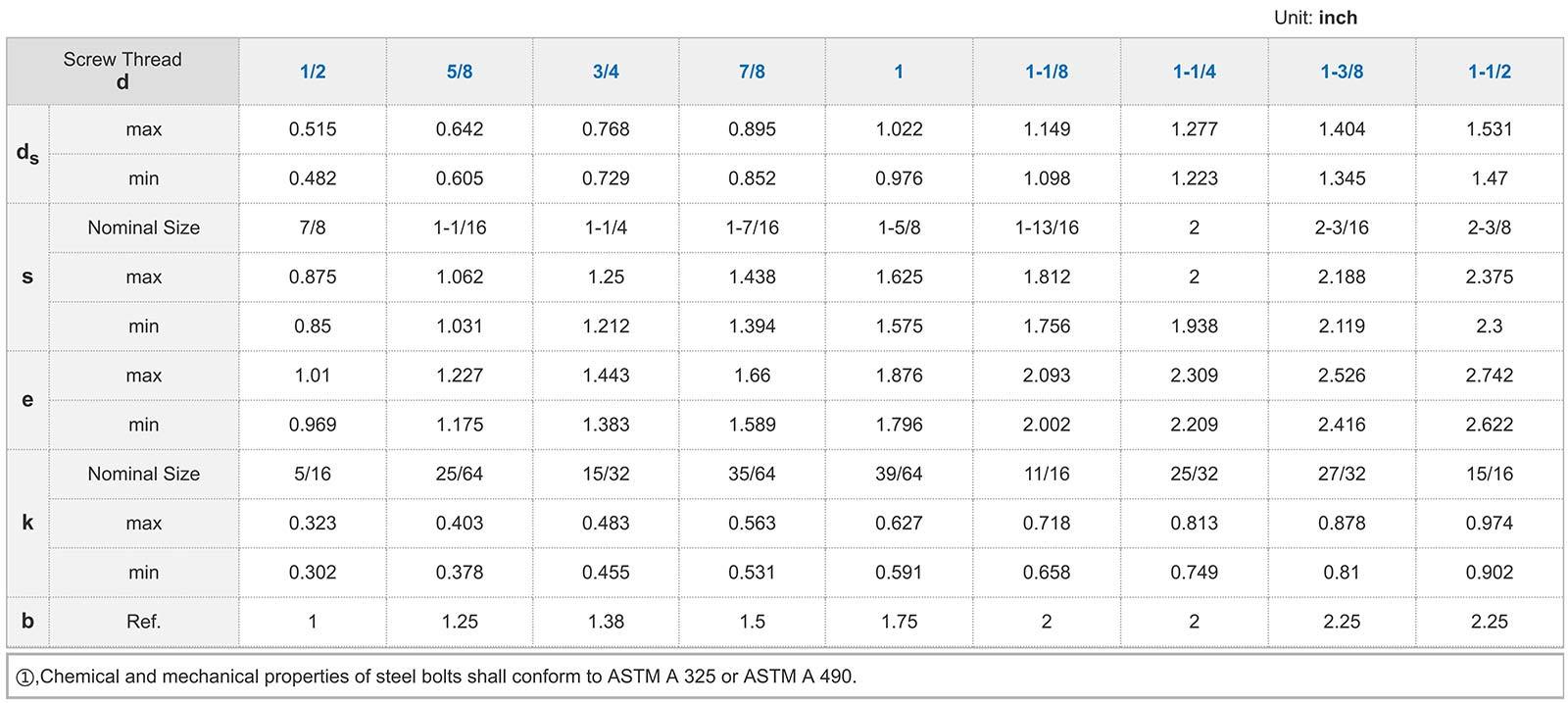

	ASME/ANSI B18.2.6
Size	M16～M30
	M16～M30
	5/8～1-1/4
Length	50mm～250mm
Grade	10.9S
Material	40Cr/35CrMoA/20MnTiB/35VB
Surface	black, zinc plated, color zinc, hot dipped galvanized, dacromet
Scope of application	It is suitable for the construction technology of large hexagon high strength bolt connection in steel structure installation project.
Form a complete set of	Large hexagon head high strength bolts, nuts and washers one bolt, one nut, two plain washers
Construction operation technology	Operation preparation → joint assembly → installation of temporary bolts → installation of high-strength bolts → fastening of high-strength bolts → inspection and acceptance
